Coconut shell fired boiler

FOB Price:

US 9000-10000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Year

Port:

Dalian, Qingdao, Shanghai, Shenzhen, Guangzhou, etc

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal

Brand:

ZG Boiler

Products Model:

DZL4-1.25

Products Details
Company Profile

Quick Details

Brand Name: ZG Boiler

Model Number: DZL4-1.25

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: Industrial steam biomass fuel boiler package: Fumigated wood box, U-steel, steel frame reach to sea transportation requirement.
Delivery Detail: --

Specifications

Product Details

Coconut shell fired boiler Working principle

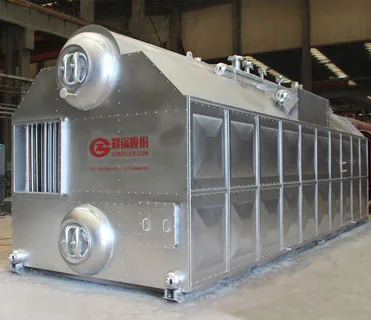

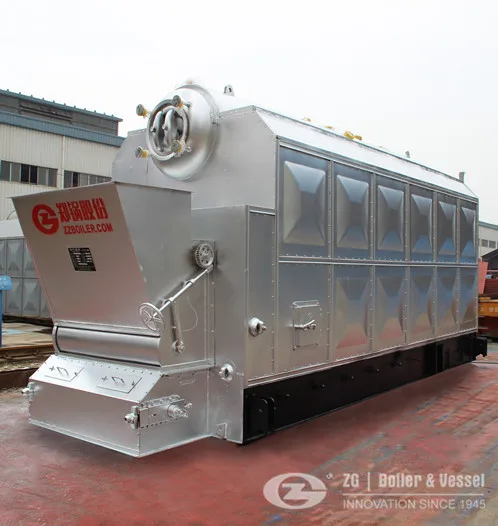

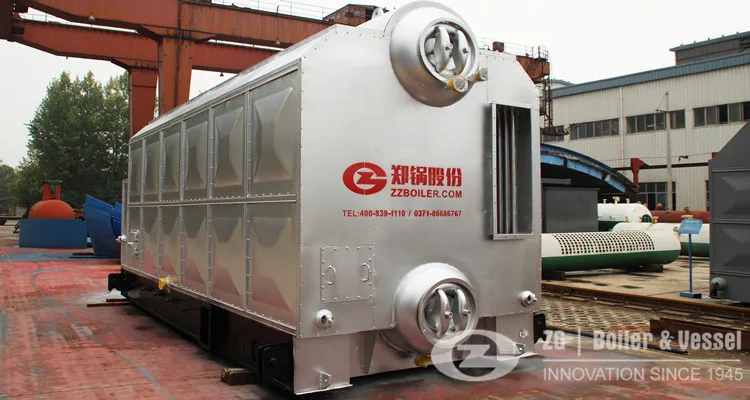

Coconut shell fired boiler is horizontal type chain grate boiler with double boiler barrels and its combustion mode is chain grate furnace. The rated evaporation is 4t/h to 20t/h. The fuel is biomass briquette solid fuel. The furnace water wall on both sides of the boiler adopts membrane wall; the water wall tube in front and rear of furnace downward stretch to the upper part of the grate to form double arches which enhance the sealing performance of the boiler and increase the volume and heating surface of the furnace.

Product Introduction

Coconut shell fired boiler performance and advantages

Original membrane water cooling wall structure: Membrane wall structure is an independent and original design of Zhengzhou Boiler Co., Ltd. The membrane wall which is always used for power station boiler is now applied to the shop-assembled boiler. It has many advantages such as large heat transfer coefficient, good heat transfer effect, low heat loss, good air tightness, no deformation and no leakage.

Product Parameters

Biomass fired steam boiler
Type	Rated Power (MW)	Rated Pressure(MPa)	Hot Water Temperature (℃)	Return water temperature (℃)	Designed fuel	Structure
DZL1.4-1.0/95/70-T	1.4	1	95	70	biomass pellet	Packaged
SZL2.8-1.0/95/70-T	2.8	1	95	70		Packaged
SZL4.2-1.0/95/70-T	4.2	1	95	70		Packaged
SZL10.5-1.25/115/70-T	10.5	1.25	115	70		Packaged
SZL14-1.0/95/70-T	14	1	95	70		Packaged

Product Details Show

Why Choose Us

About us

The professional skills on biomass hot water boiler parts to insure the boiler quality.

Equipment & technology

We have strict demand on biomass boiler parts making with precision.

Service

We welcome clients to visit our boiler workshop for more biomass boiler details, and our engineer will design the project for you.

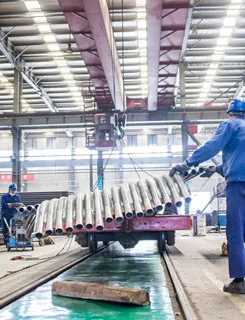

Product Processing

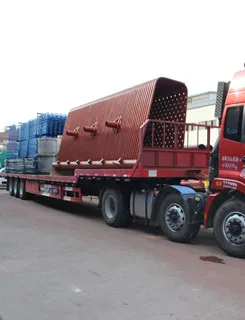

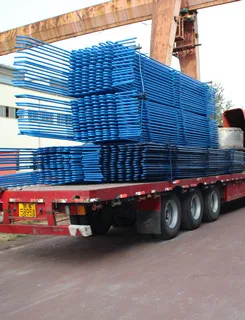

Product Packing

Industrial Coconut shell fired boiler

Zhengzhou Boiler CO., Ltd is a leading industrial horizontal boiler manufacturer and exporter in Henan Province, China, founded in 1945, is a joint-stock enterprise with A1, A2, C3 pressure vessel design and manufacture license permits. We are specialized in the producing of horizontal Gas fired boiler,horizontal oil fired boiler, horizontal Biomass fired boiler,horizontal Coal fired boiler,horizontal Chain grate boiler,CFB boiler,Waste heat recovery boiler,Industrial autoclave,AAC block plant. The industrial boiler and autoclaves are developed with technical advantages, stable and reliable performance, exported to Southeast Asia, Africa, Middle East and other countries.

As the company continues to grow, many honors have followed us. Now the company has covered an area of 20,000 square meters, with more than 1500 employees and more than 1000 various types of manufacturing equipments, and ten large research bases.

The main products are:
1. WNS series gas & oil horizontal steam boiler 1-20 ton/hour, hot water boiler 0.7-14MW
2. SZL series chain grate boiler: 4 ~ 25 T/h steam boiler, 1.4 ~ 14 MW hot water boiler;
3. DZL series chain grate boiler: 2 ~ 25 T/H steam boiler, 2.8~ 17.5 MW hot water boiler;
4. CFB boiler(power plant boiler) is 10-280 ton
5. Biomass boiler: 2 ~ 25 T/H steam boiler, 2.8~ 17.5 MW hot water boiler;
6. AAC block plant : 50000-250000m3
